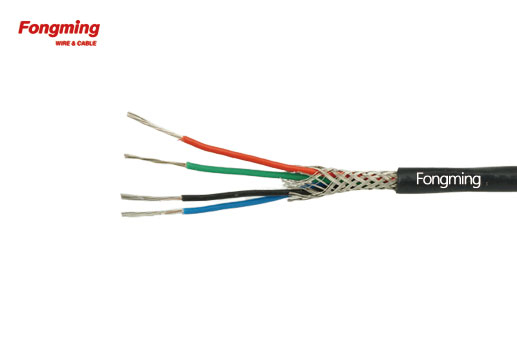

Cable blindado multi FEP 200C 600V

Color: rojo, blanco, amarillo, verde, marrón, negro, azul, rosa, etc.
Tamaño: 2 * 18AWG, 3 * 18AWG, 4 * 18AWG, 5 * 18AWG, 6 * 18AWG, 7 * 18AWG, 2 * 16AWG, 3 * 16AWG, 4 * 16AWG, 5 * 16AWG, 6 * 16AWG, 7 * 16AWG, 2 * 14 AWG, 3 * 14 AWG, 4 * 14 AWG, 5 * 14 AWG, 6 * 14 AWG, 7 * 14 AWG
Paquete: 305 m / rollo
Cantidad:
  • FPF

  • Fongming

Cable blindado multi FEP 200C 600V


Descripción

Nombre: Muti FEP Shield Cable

Modelo: FPF

Tamaño: 2 * 18 ~ 7 * 14AWG

Característica

Voltaje nominal: 600 V

Temperatura nominal: 200 ℃

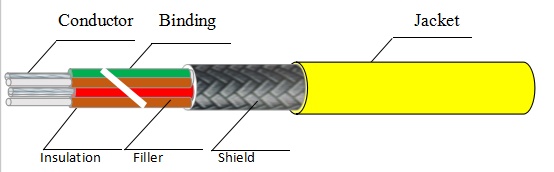

Estructura

Conductor: Cobre estañado, Cobre niquelado

Aislamiento: FEP extruido

Relleno: fibra de vidrio con aislamiento FEP

Encuadernación: hilo de poliéster

Escudo: Cobre estañado

Chaqueta: FEP



FPF



Talla

(AWG)

Conductor

Estructura

(mm)

Diámetro

(mm)

Espesor de aislamiento

(mm)

Diámetro

(mm)

Cableado

Diámetro

Proteger

Grosor

(mm)

Chaqueta

Grosor

(mm)

SOBREDOSIS.

(mm)

2 * 18

7 / 0,39

1.17

0.25

1.70

3.40

0.2

0.51

4,6 ± 0,2

3 * 18

7 / 0,39

1.17

0.25

1.70

3.70

0.2

0.51

4,9 ± 0,2

4 * 18

7 / 0,39

1.17

0.25

1.70

4.10

0.2

0.51

5,3 ± 0,3

5 * 18

7 / 0,39

1.17

0.25

1.70

4.60

0.2

0.51

5,8 ± 0,3

6 * 18

7 / 0,39

1.17

0.25

1.70

4.80

0.2

0.51

6,0 ± 0,3

7 * 18

7 / 0,39

1.17

0.25

1.70

5.10

0.2

0.51

6,3 ± 0,3

2 * 16

19 / 0,3

1.50

0.25

2.00

4.00

0.2

0.51

5,2 ± 0,3

3 * 16

19 / 0,3

1.50

0.25

2.00

4.30

0.2

0.51

5,6 ± 0,3

4 * 16

19 / 0,3

1.50

0.25

2.00

4.80

0.2

0.51

6,1 ± 0,3

5 * 16

19 / 0,3

1.50

0.25

2.00

5.40

0.2

0.51

6,7 ± 0,3

6 * 16

19 / 0,3

1.50

0.25

2.00

5.60

0.2

0.51

6,9 ± 0,3

7 * 16

19 / 0,3

1.50

0.25

2.00

6.00

0.2

0.51

7,3 ± 0,4

2 * 14

19 / 0,37

1.85

0.25

2.40

4.80

0.2

0.51

6,0 ± 0,3

3 * 14

19 / 0,37

1.85

0.25

2.40

5.20

0.2

0.51

6,4 ± 0,3

4 * 14

19 / 0,37

1.85

0.25

2.40

5.80

0.2

0.51

7,0 ± 0,3

5 * 14

19 / 0,37

1.85

0.25

2.40

6.50

0.2

0.51

7,7 ± 0,4

6 * 14

19 / 0,37

1.85

0.25

2.40

6.70

0.2

0.51

7,9 ± 0,4

7 * 14

19 / 0,37

1.85

0.25

2.40

7.20

0.2

0.51

8,4 ± 0,4
