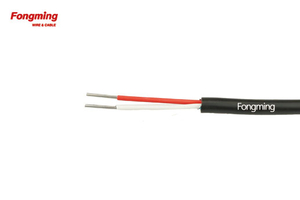

Alambre y cable de termopar K-VV

Tamaño: 2 * 26-2 * 14AWG
Color: P: verde, N: blanco
Paquete: 305 m / rollo
Cantidad:
  • K-VV

  • Fongming

K Par termoeléctricoWira


Descripción

Nombre: cable de termopar

Modelo: Tipo K-VV

Tamaño: 2 * 26-2 * 14AWG

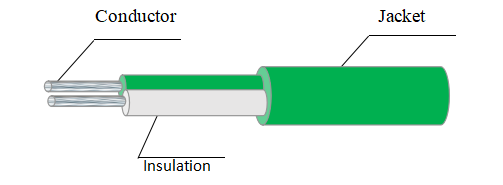

Estructura

Conductor: Ni-Cr positivo, Ni-Si negativo

Aislamiento: PVC

Color: P: verde, N: blanco

Chaqueta: PVC

Color verde


微 信 截图 _20201204113527

Talla

(AWG)

Conductor

Estructura

P&N (mm)

Diámetro

(mm)

Espesor de aislamiento

(mm)

Diámetro

(mm)

Chaqueta

Grosor

(mm)

SOBREDOSIS.

(mm)

2 * 26

7 / 0,16

0.48

0.3

1.1

0.5

2,1 * 3,2

2 * 24

7 / 0,2

0.6

0.3

1.2

0.5

2,2 * 3,4

2 * 22

7 / 0,254

0.76

0.3

1.4

0.5

2,4 * 3,8

2 * 20

7 / 0,32

0.96

0.3

1.6

0.5

2.6 * 4.2

2 * 18

7 / 0,39

1.17

0.4

2.0

0.6

3,2 * 5,2

2 * 16

19 / 0,3

1.5

0.4

2.3

0.6

3,5 * 5,8

2 * 14

19 / 0,37

1.85

0.4

2.7

0.6

3.9 * 6.6
