Alambre y cable de termopar JX-FGP

Tamaño: 2 * 26-2 * 14AWG
Color: P: negro, N: blanco
Paquete: 305 m / rollo
Cantidad:
  • JX-FGP

  • Fongming

J Par termoeléctricoWira


Descripción

Nombre: cable de termopar

Modelo: Tipo JX-F-GP

Tamaño: 2 * 26-2 * 14AWG

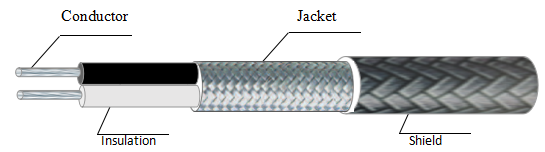

Estructura

Conductor: Fe, Cu-Ni

Aislamiento: FEP

Color: P: negro, N: blanco

Chaqueta: trenza de fibra de vidrio con revestimiento de resina de silicona

Color: P: negro

Escudo: alambre de acero inoxidable


微 信 截图 _20201127140134


Talla

(AWG)

Conductor

Estructura

P&N (mm)

Diámetro

(mm)

Espesor de aislamiento

(mm)

Diámetro

(mm)

Chaqueta

Grosor

(mm)

Diámetro

(mm)

Proteger

Grosor

(mm)

sobredosis

(mm)

2 * 26

7 / 0,16

0.48

0.2

0.9

0.2

1.3 * 2.0

0.2

1,7 ± 0,2 * 2,2 ± 0,2

2 * 24

7 / 0,2

0.6

0.2

1.0

0.2

1,4 * 2,2

0.2

1,8 ± 0,2 * 2,4 ± 0,2

2 * 22

7 / 0,254

0.76

0.2

1.2

0.2

1,6 * 2,6

0.2

2,0 ± 0,2 * 2,8 ± 0,2

2 * 20

7 / 0,32

0.96

0.2

1.4

0.2

1.8 * 3.0

0.2

2,2 ± 0,2 * 3,2 ± 0,2

2 * 18

7 / 0,39

1.17

0.25

1.7

0.2

2,1 * 3,6

0.2

2,5 ± 0,2 * 3,8 ± 0,2

2 * 16

19 / 0,3

1.5

0.25

2.0

0.2

2,4 * 4,2

0.2

2,8 ± 0,2 * 4,4 ± 0,2

2 * 14

19 / 0,37

1.85

0.25

2.4

0.2

2.8 * 5.0

0.2

3,2 ± 0,2 * 5,2 ± 0,2
